$6,499.00

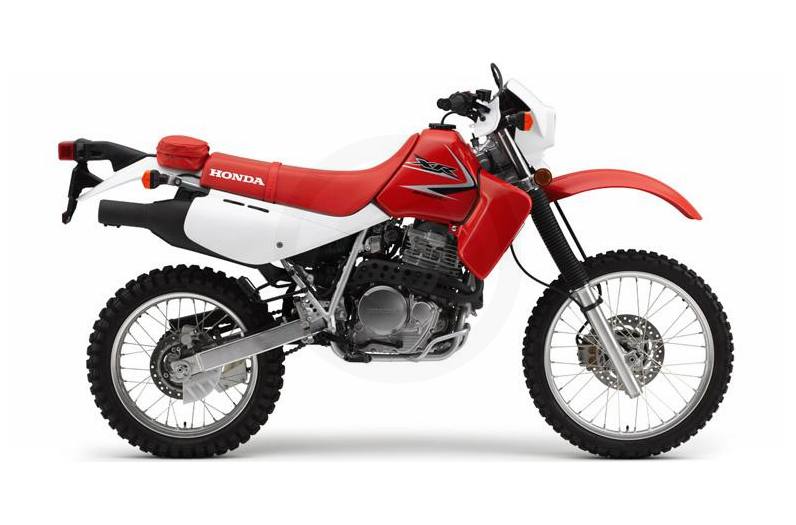

2009 Honda XR650L
Request a Quote Financing Calculator Financing Form
Click here to view full image.
Red
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

It all starts in the engine room, where the XR's potent, Baja-bred 644cc OHC powerplant uses Honda's patented Radial Four-Valve Combustion Chamber (RFVC) to put out huge torque and power. From there, a gear-driven counterbalancer minimizes vibrations, while a light, rigid chassis and long-travel suspension soak up the bumps and deliver superb handling on pavement and off. Handy electric starting simply makes it all that much easier. The XR650L. The name is new, but it's as good as ever.

    ENGINE
    • Engine Type: 644cc air-cooled dry-sump single-cylinder four-stroke
    • Bore and Stroke: 100.0mm x 82.0mm
    • Compression Ratio: 8.3:1
    • Valve Train: SOHC; four-valve RFVC
    • Induction: 42.5mm diaphragm-type CV carburetor
    • Ignition: Solid-state CD with electronic advance
    DRIVE TRAIN
    • Transmission: Five-speed
    • Final Drive: #520 O-ring-sealed chain; 15T/45T
    CHASSIS / SUSPENSION / BRAKES
    • Front Suspension: 43mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability; 11.6-inches of travel
    • Rear Suspension: Pro-link Showa® single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability; 11.0-inches travel
    • Front Brake: Single disc with twin-piston caliper
    • Rear Brake: Single disc
    • Front Tire: 3.00-21
    • Rear Tire: 4.60-18
    DIMENSIONS
    • Rake: 27.0 degrees
    • Trail: 102.0mm (4.0 inches)
    • Wheelbase: 57.3 inches
    • Seat Height: 37.0 inches
    • Curb Weight: 346 lbs (*Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
    • Fuel Capacity: 2.8 gallons, including 0.6-gallon reserve
    • Ground Clearance: 13.0 inches
    FACTORY WARRANTY INFORMATION
    • One Year: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

    Specifications

    Engine
    Engine Type Dry-sump single-cylinder four-stroke
    Displacement 644 cc
    Bore and Stroke 100.0 x 82.0 mm
    Cooling Air-cooled
    Compression Ratio 8.3:1
    Fuel System 42.5 mm diaphragm-type CV carburetor
    Ignition Solid-state CD with electronic advance
    Chassis
    Front Suspension 43 mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability; Travel: 11.6 in.
    Front Brakes Single disc with twin-piston caliper
    Front Tire 3.00-21
    Rear Suspension Pro-link Showa® single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability; Travel: 11.0 in.
    Rear Brakes Single disc
    Rear Tire 4.60-18
    Dimensions
    Dry Weight 346 lbs. (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
    Fuel Capacity 2.8 gal. (including 0.6-gal. reserve)
    Wheelbase 57.3 in.
    Ground Clearance 13.0 in.
    Seat Height 37.0 in.
    Trail 4.0 in. (102.0 mm)
    Rake 27.0°
    Transmission
    Transmission Five-speed
    Final Drive #520 O-ring-sealed chain; 15T/45T
    General
    Colors Red
    Warranty One Year: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model XR650L
    Style Off-Road
    MSRP* $6,499.00
    Chassis
    Front Suspension 43 mm air-adjustable leading-axle Showa cartridge fork with 16-position compression-damping adjustability; Travel: 11.6 in.
    Front Brakes Single disc with twin-piston caliper
    Front Tire 3.00-21
    Rear Suspension Pro-link Showa® single-shock with spring-preload, 20-position compression- and 20-position rebound-damping adjustability; Travel: 11.0 in.
    Rear Brakes Single disc
    Rear Tire 4.60-18
    Dimensions
    Dry Weight 346 lbs. (Includes all standard equipment, required fluids and full tank of fuel-ready to ride)
    Fuel Capacity 2.8 gal. (including 0.6-gal. reserve)
    Wheelbase 57.3 in.
    Ground Clearance 13.0 in.
    Seat Height 37.0 in.
    Trail 4.0 in. (102.0 mm)
    Rake 27.0°
    Engine
    Engine Type Dry-sump single-cylinder four-stroke
    Displacement 644 cc
    Bore and Stroke 100.0 x 82.0 mm
    Cooling Air-cooled
    Compression Ratio 8.3:1
    Fuel System 42.5 mm diaphragm-type CV carburetor
    Ignition Solid-state CD with electronic advance
    General
    Colors Red
    Warranty One Year: Transferable, unlimited mileage limited warranty; extended coverage available with a Honda Protection Plan
    Transmission
    Transmission Five-speed
    Final Drive #520 O-ring-sealed chain; 15T/45T

    Current Promotions

    There are currently no promotions available for this product.
